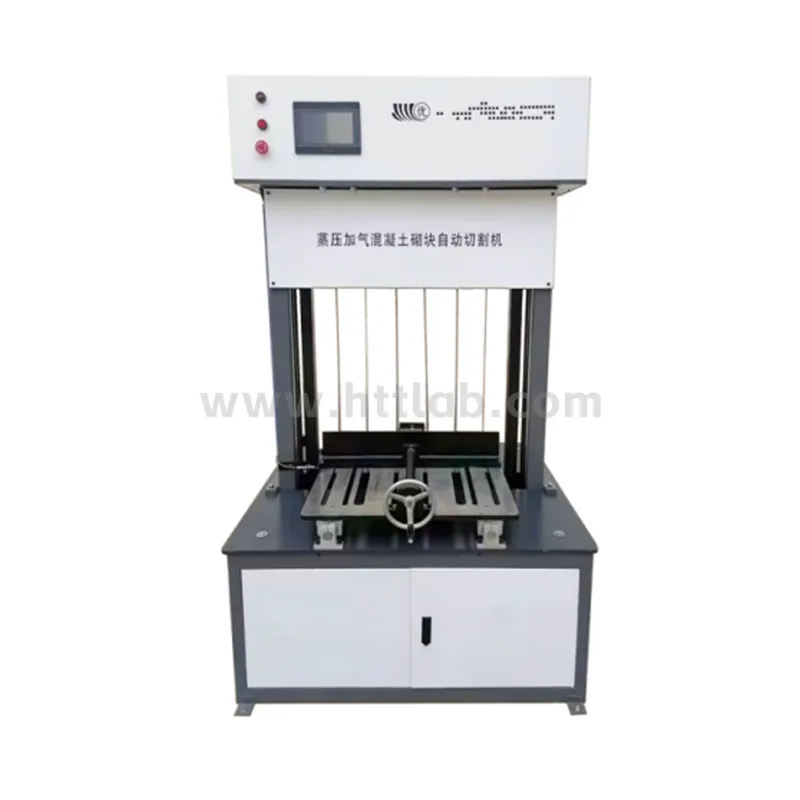

HTGBT-2020 Autoclaved Aerated Concrete Block Automatic Cutting Machine

This machine is a special cutting saw developed and produced in accordance with the requirements of GB/T11969-2020 "Test Methods for Properties of Autoclaved Aerated Concrete", which was issued by the State Administration for Market Regulation and the National Standardization Administration on September 29, 2020 and required to be implemented on August 1, 2021.

Contact form

Product introduction

This machine is a special cutting saw developed and produced in accordance with the requirements of GB/T11969-2020 “Test Methods for Properties of Autoclaved Aerated Concrete”, which was issued by the State Administration for Market Regulation and the National Standardization Administration on September 29, 2020 and required to be implemented on August 1, 2021. The machine adopts a frame-type multi-blade saw structure, with a microcomputer servo motor cooperating with a high-precision guide rail for digital electric control automatic feed cutting.

Technical parameters

1、rated voltage	380V(Three-phase four-wire, three live wires and one neutral wire)
2、Total power	2.5KW
3、Maximum cutting height	600MM
4、Maximum cutting width	350MM
5、Saw parts	stepless speed regulation speed
6、Height of the sawn part	700MM
7、Overall dimensions	length 1.2 * width 1.24 * height 2M
8、Weight	483 kg
