Contact formOverview of Applications:
Suitable for heating applications in industrial, agricultural, mining, medical, research, laboratory, and household environments.
Product Features:
- Constructed with premium cold-rolled steel plate featuring electrostatic spray coating for enhanced corrosion resistance and durability.
- Equipped with thyristor-based stepless power adjustment to meet various heating temperature requirements.
Technical Parameters:

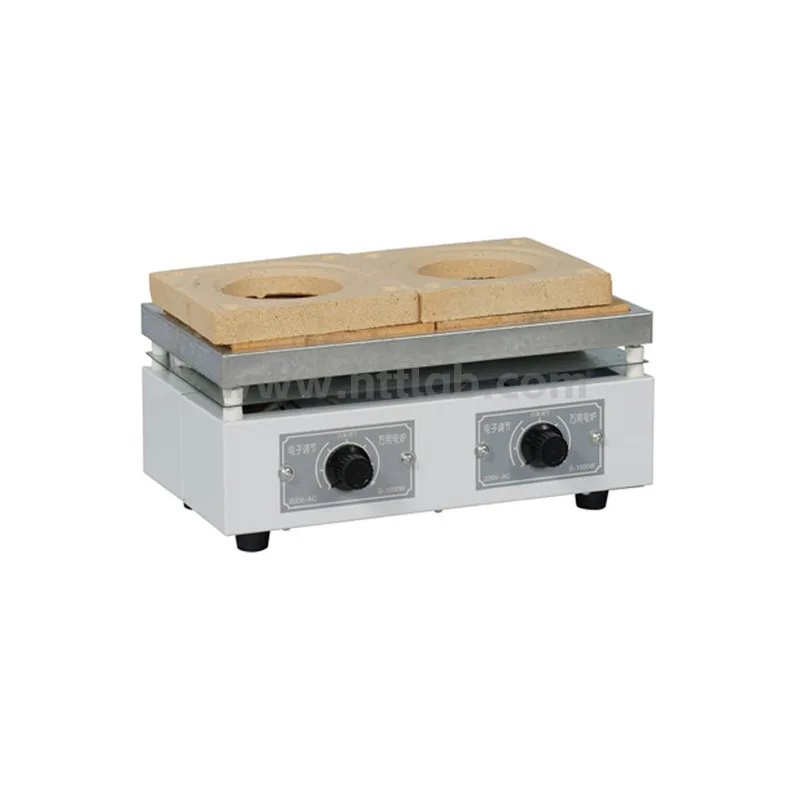

| Model | DL-1 | DL-1 | DL-1 (Dual) | DL-1 | DL-1 |
| Configuration | Single 1KW | Single 2KW | Dual Unit | Quad Unit | Hex Unit |
| Heating Method | Thermal Conduction | ||||
| Exterior | Cold-rolled steel with electrostatic coating | ||||
| Heating Element | Resistance wire | ||||
| Rated Power (W) | 1000 | 2000 | 2000 | 4000 | 6000 |
| Voltage | 220V AC | ||||
| Hot Plate Specs (mm) | 135×135×1 | 155×155×1 | 135×135×2 | 135×135×4 | 135×135×6 |
