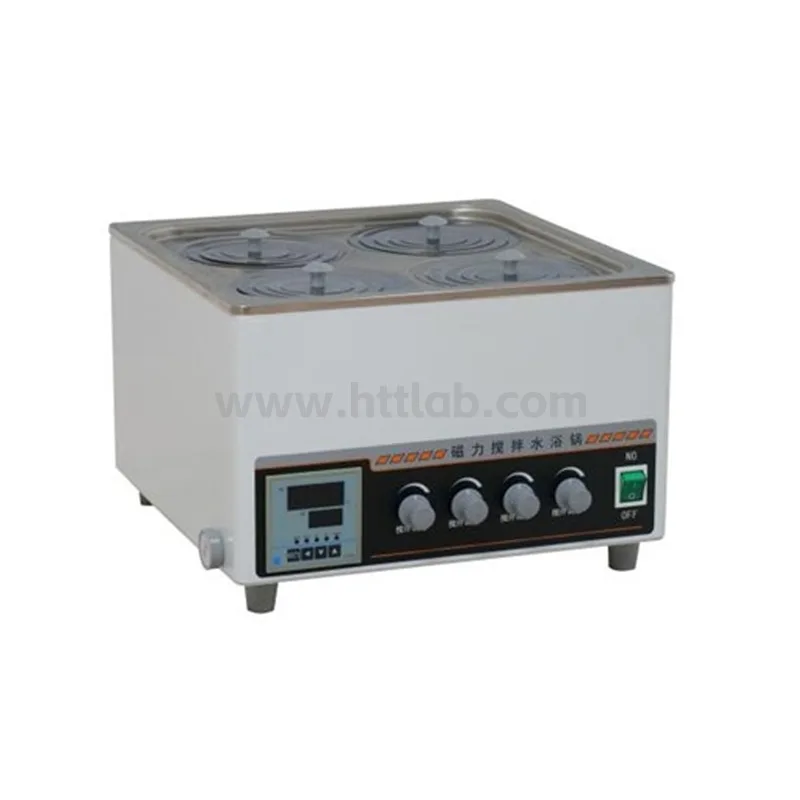

Magnetic Stirring Water Bath

The magnetic stirring water bath combines constant-temperature heating with stirring functions, suitable for distillation, concentration, soaking of chemical or biological products, as well as constant-temperature heating and mixing for various temperature experiments.

Overview of Applications:

Product Features:

Stainless steel working chamber with stretched tank design.
Intelligent temperature controller with high precision, digital display, and automatic temperature regulation.
Stepless speed adjustment with stable rotation.
Capable of simultaneously heating and stirring multiple samples, with independent speed settings for each.
Stirring bars made of PTFE and magnetic steel, offering high-temperature resistance and strong magnetism, enabling precise and stable mixing of liquids in sealed containers across a wide speed range.

Technical Parameters:

Model	CLJB-A	Single-row Single-hole	Single-row Double-hole	Double-row Four-hole	Double-row Six-hole	Double-row Eight-hole
Temperature Range		RT+5-100°C
Temperature Resolution		0.1°C
Temperature Fluctuation		±0.5°C
Temperature Uniformity		±1°C
Inner Material		Stainless steel stretched tank
Outer Material		Cold-rolled steel plate with electrostatic coating
Insulation Material		Polyurethane
Control Method		Intelligent digital temperature control
Heater		Stainless steel heating tube
Heating Power		0.4KW	0.5KW	1KW	1.5KW	2KW
Stirring Power		25W	25W×2	25W×4	25W×6	25W×8
Sensor		CU50
Safety Feature		Over-temperature alarm
Chamber Size (L×W×H, mm)		160×170×90	310×170×90	310×310×90	480×310×90	620×310×90
Overall Dimensions (L×W×H, mm)		200×200×230	345×200×230	345×345×230	510×345×230	770×360×220
Stirring Speed		Start-2600 rpm
Power Supply		220V 50Hz
