Contact formThe HTTN-3000 Luminescent Nitrogen Analyzer system uses the chemiluminescence method to determine the total nitrogen content, which enhances the ability to resist impurity interference, avoids the cumbersome operation of the titration cell in the coulometric method and the resulting unstable factors, and thus greatly improves the sensitivity of the instrument. The key components of the system adopt imported devices, which ensures the reliable performance of the whole machine.
Main Features：
1. High sensitivity: The HTTN-3000 system uses the chemiluminescence method to determine the total nitrogen content, which improves the ability to resist impurity interference, avoids the cumbersome operation of the titration cell in the电量法 (coulometric method) and the resulting unstable factors, and greatly enhances the sensitivity of the instrument. The key components of the system adopt imported devices, which ensures the reliable performance of the whole machine.。
2. The implementation standard of the instrument is：
| GB/T 17674－2012 | Determination of Nitrogen Content in Crude Oil and Its Products – Chemiluminescence Method |
| SH/T 0657－2007 | Method for Determination of Trace Nitrogen in Liquid Petroleum Hydrocarbons (Oxidative Combustion and Chemiluminescence Method) |
| SH/T 0704－2001 | Test Method for Nitrogen Content in Petroleum and Petroleum Products (Boat Injection Chemiluminescence Method) Petrochemical Industry Standard |
| ASTM D4629－2017 | Standard Test Method for Determination of Trace Organically Bound Nitrogen in Liquid Petroleum Hydrocarbons by Injection/Insertion of Oxidative Fuel and Chemiluminescence |
| ASTM D5762－2012 | Test Method for Determination of Nitrogen in Petroleum and Petroleum Products by Ship Inlet Chemiluminescence Method |
| ASTM D6069－2001 | Standard Test Method for Determination of Trace Nitrogen in Aviation Hydrocarbons by Oxidative Combustion and Reductive Pressure Chemiluminescence Detection |
3、System Configuration：
Standard configuration: computer +HTTN-3000 system + liquid sampler

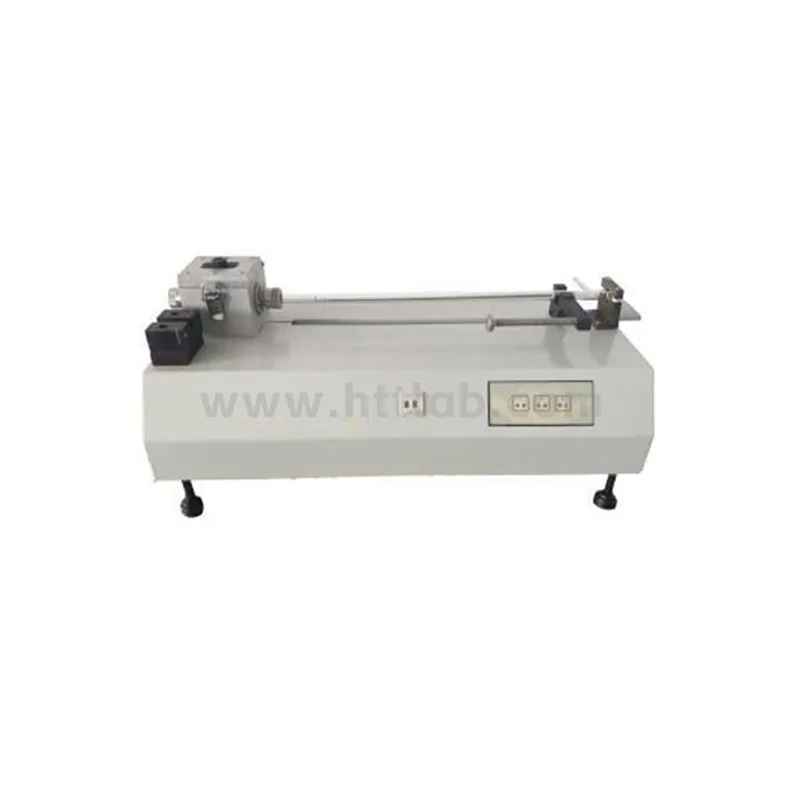

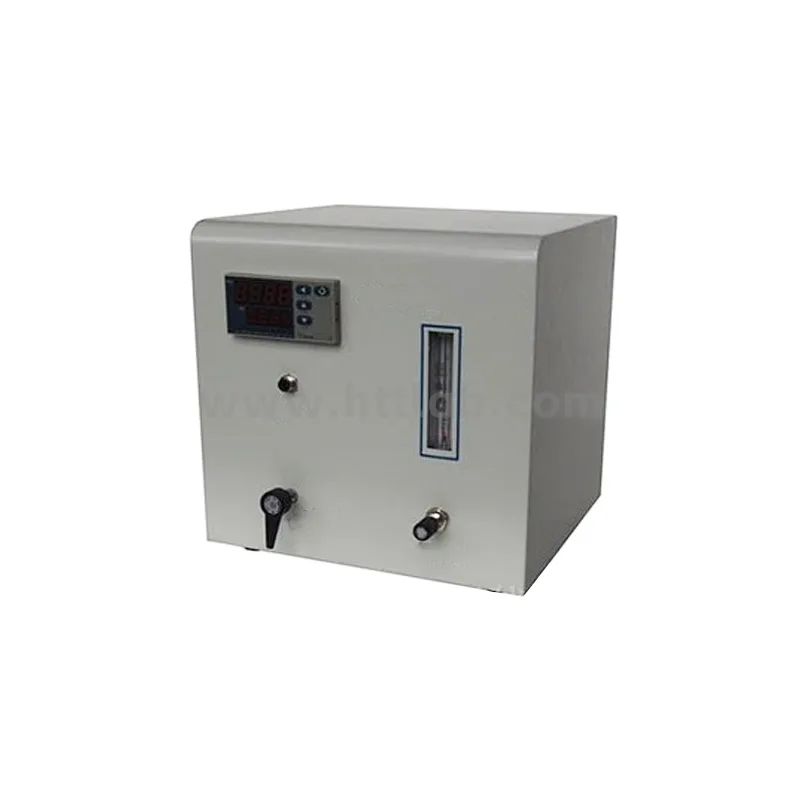

Other optional accessories: solid sampler, gas sampler
4、Easy to operate：
Based on the Chinese operation interface of Windows (7, XP, Me, 98), the operation is more convenient and faster. You only need to click the mouse to complete all parameter settings and condition selection, and the computer will control data collection, processing, storage and printing.
Technical Parameters of HTTN-3000 Luminescent Nitrogen Analyzer
Basic parameters: Types of samples: liquids, solids, and gases
Determination method: Chemiluminescence method（N）
Sample injection volume: solid samples：1-20mg
liquid sample：5-20μL
gas sample：1-5mL
Measurement range：0.05 ～20000 ppm(mg/L)（High concentration can be diluted）
Measuring time：about 2 minutes
Measurement accuracy：
| concentration value (ppm) | RSD(％) |
| ＜1 | 10 |
| 1～10 | 8 |
| 10～100 | 5 |
| >100 | 3 |
Temperature control range：Room temperature ～ 1300℃
Temperature control accuracy：±1℃
Requirements for gas source：High-purity argon gas：Purity of 99.9% or higher,
High-purity oxygen：Purity of over 99.9%
Power Supply：AC220V±22V，50Hz±0.5Hz，1500 W
Overall dimensions：host：305(W)×460(D)×440(H)mm
Temperature control：550(W)×460(D)×440(H)mm
Weight：host：20kg
Temperature control：40kg
