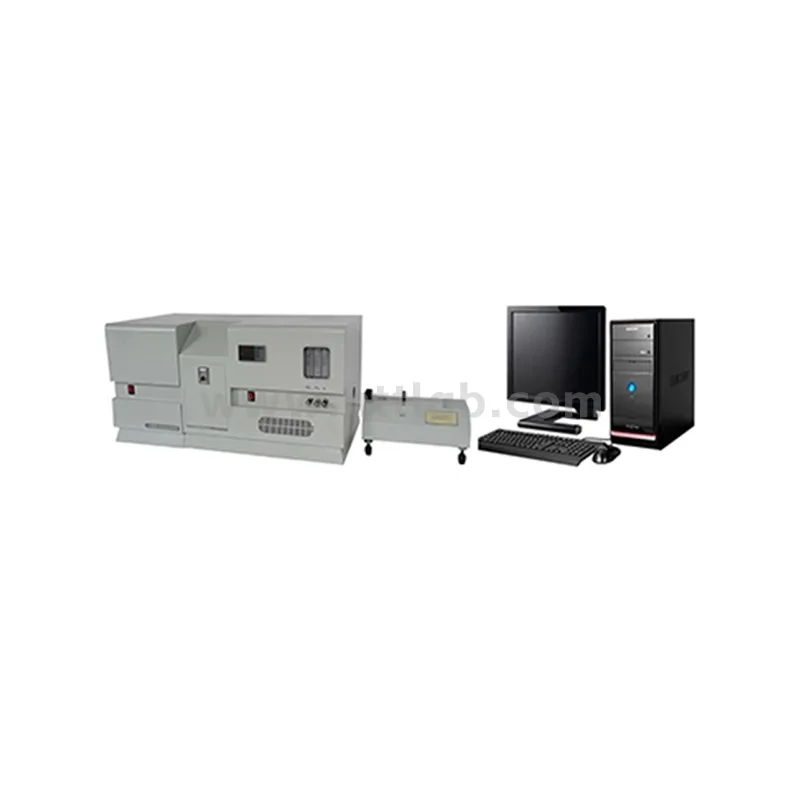

The HTTNS-3000 Sulfur and Nitrogen Analyzer uses the ultraviolet fluorescence method to determine total sulfur content and the chemiluminescence method to determine nitrogen content. This enhances its ability to resist impurity interference, avoids the cumbersome operation of the titration cell in the coulometric method and the resulting unstable factors, and greatly improves the sensitivity of the instrument. Key components of the system adopt imported devices, ensuring reliable overall performance of the instrument. Application fields: environmental protection, chemical industry, biological industry, petroleum, energy.

Instrument execution standards：

SH/T 0689－2000　Test Method for Determination of Total Sulfur Content in Light Hydrocarbons, Engine Fuels and Other Petroleum Products (Ultraviolet Fluorescence Method)

BS EN 15486-2007 Ethanol is a blended component of petroleum. Determination of sulfur content

ISO 20846-2011 Petroleum Products – Determination of Sulfur Content in Automotive Fuels – Ultraviolet Fluorescence Method

ASTM D 5453 -2016 Standard Test Method for Determination of Total Sulfur in Light Hydrocarbons, Spark-Ignition Engine Fuels, Diesel Engine Oils, and Engine Oils by Ultraviolet Fluorescence Measurement

GB/T 17930-2016 Motor gasoline

GB/T 19147-2016 Diesel fuel for vehicles

SH/T 0657－2007　Method for Determination of Trace Nitrogen in Liquid Petroleum Hydrocarbons (Oxidative Combustion and Chemiluminescence Method）

SH/T 0704－2010 Determination of Nitrogen Content in Petroleum and Petroleum Products (Boat Injection Chemiluminescence Method) Petrochemical Industry Standard

ASTM D4629－2010 Standard Test Method for Determination of Trace Organically Bound Nitrogen in Liquid Petroleum Hydrocarbons by Injection/Insertion of Oxidative Fuel and Chemiluminescence

GB/T 17674－2012 Determination of Nitrogen Content in Crude Oil – Boat Injection Chemiluminescence Method

ASTM D5762 -2012 Test Method for Determination of Nitrogen in Petroleum and Petroleum Products by Boat-Inlet Chemiluminescence

ASTM D6069-2001 Standard Test Method for Determination of Trace Nitrogen in Hydrocarbons for Aviation by Oxidative Combustion and Reductive Pressure Chemiluminescence Detection

System Configuration

Standard configuration: computer + HTTNS-3000 system + liquid sampler

Other optional accessories: gas sampler, solid sampler

Easy to operate：

Based on the Chinese operation interface of Windows (7, XP, Me, 98), the operation is more convenient and faster. You only need to click the mouse to complete all parameter settings and condition selection, and the computer will control data collection, processing, storage and printing.

HTTNS-3000Technical Parameters of Sulfur and Nitrogen Analyzer：

Types of samples: liquid, solid and gas

Determination method: Ultraviolet fluorescence method (S) Chemiluminescence method (N)

Sample injection volume: solid samples：1-20mg

　　　　　　liquid sample：5-20μL

　　　　　　gas sample：1-25mL　　　

Measurement range：0.1 ～10000mg/L（High concentration can be diluted）

Temperature control range: room temperature～1300℃

Temperature control accuracy：±1℃

Detection sample time: about 2 minutes

Gas source requirements: High-purity argon: purity above 99.98%

　　　　　High-purity oxygen: purity of 99.98% or higher

Power Supply：AC220V±22V，50Hz±0.5Hz，1500 W

Overall dimensions: Main unit:305(W)×460(D)×400(H)mm

Temperature control：550(W)×460(D)×400(H)mm

Weight: Main unit：15kg

Temperature control：30kg

Measurement accuracy：
